Security camera DVR systems are essential for monitoring and recording video footage in homes and businesses. However, accessing the DVR hard drive can be a bit challenging for those who are not familiar with the process. In this article, we will guide you through the steps to access the hard drive of your security camera DVR.
Before you begin, it is important to note that accessing the DVR hard drive may void the warranty of your system, so proceed with caution and at your own risk.
To access the security camera DVR hard drive, you will need to:
Step-by-step guide for accessing DVR hard drive
Step 1: Power off the DVR system and unplug it from the power source.
Step 2: Open the DVR casing by removing the screws on the cover.
Step 3: Locate the hard drive inside the DVR system.
Step 4: Disconnect the cables attached to the hard drive carefully.
Step 5: Remove the hard drive from the DVR system.

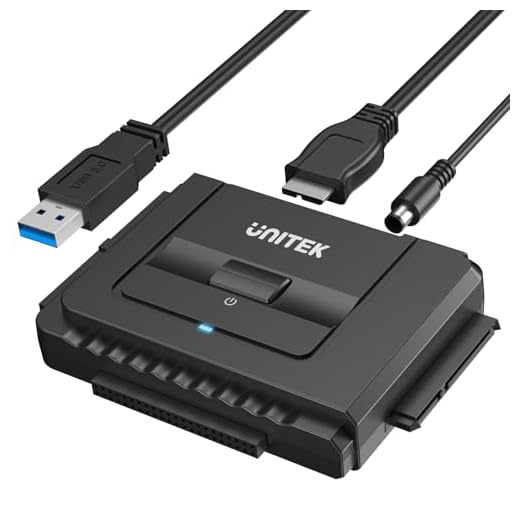

Step 6: Connect the hard drive to a computer using a SATA-to-USB adapter.
Step 7: Access the hard drive on the computer to view the recorded footage.
Step 8: Safely eject the hard drive from the computer.
Step 9: Reconnect the hard drive to the DVR system.
Step 10: Close the DVR casing and secure it with screws.
Now you have successfully accessed the DVR hard drive and viewed the footage on your computer.
Tools required for accessing DVR hard drive
Before attempting to access the hard drive of a security camera DVR, you will need the following tools:
- Screwdriver set: To open the DVR casing and access the hard drive.
- SATA to USB adapter: To connect the DVR hard drive to a computer for data retrieval.
- Computer: To connect the DVR hard drive and access the data stored on it.
- Software: Depending on the DVR system, you may need specific software to access the data on the hard drive.
Locating the DVR hard drive in security camera system
When it comes to accessing the DVR hard drive in a security camera system, the first step is to locate where the hard drive is physically installed. In most security camera systems, the DVR hard drive is typically housed within the DVR unit itself. The DVR unit is the central component of the system where all video footage is stored.
To locate the DVR hard drive, you will need to open the DVR unit. This usually involves removing the cover of the DVR unit to access the internal components. Inside the DVR unit, you will find the hard drive connected to the motherboard. The hard drive is a rectangular-shaped device with data and power cables connected to it.
It’s important to handle the DVR hard drive with care to avoid any damage. Once you have located the hard drive, you can proceed with accessing it for maintenance, upgrades, or data retrieval.
Connecting to the DVR hard drive
If you need to access the security camera DVR hard drive, you can do so by following these steps:
| 1. | Turn off the DVR and disconnect it from power. |
| 2. | Locate the DVR hard drive inside the system. It is typically a small, rectangular component. |
| 3. | Disconnect the hard drive from the DVR using the appropriate cables. |
| 4. | Connect the hard drive to a computer using a SATA-to-USB adapter. |
| 5. | Access the hard drive on the computer to view and retrieve the recorded footage. |
By following these steps, you can easily connect to the DVR hard drive and access the footage stored on it.
Accessing the DVR hard drive remotely
Accessing the DVR hard drive remotely is a convenient way to view and manage your security camera footage from anywhere in the world. Here are the steps to access the DVR hard drive remotely:
- Set up port forwarding on your router to allow remote access to the DVR. Consult your router’s manual for instructions on how to do this.
- Obtain the external IP address of your network. You can find this by searching “What is my IP address” on a search engine.
- Download and install remote viewing software provided by the DVR manufacturer on your computer or mobile device.
- Launch the remote viewing software and enter the external IP address of your network, along with the port number assigned to the DVR.
- Enter your DVR’s username and password to log in and access the DVR hard drive remotely.
By following these steps, you can easily access your DVR hard drive remotely and monitor your security camera footage from anywhere with an internet connection.
Troubleshooting common issues when accessing DVR hard drive
When trying to access your DVR hard drive, you may encounter some common issues that can prevent you from successfully retrieving your footage. Here are some troubleshooting tips to help you overcome these problems:
| Issue | Solution |
| The DVR hard drive is not recognized by the system | Check the connections and make sure the hard drive is properly installed. Try connecting it to a different port or system to see if it is detected. |
| Corrupted files or data on the hard drive | Use data recovery software to attempt to recover the files. If the drive is physically damaged, consult a professional data recovery service. |
| Incorrect permissions or security settings | Ensure that you have the necessary permissions to access the files on the DVR hard drive. Check the security settings and adjust them if needed. |
| Compatibility issues with your operating system | Make sure that the DVR hard drive is compatible with your operating system. Update drivers or firmware if necessary to ensure proper functionality. |
| Physical damage to the hard drive | If the hard drive has physical damage, such as clicking noises or not spinning, it may require professional repair or data recovery services. |
Ensuring data security when accessing DVR hard drive
When accessing a DVR hard drive, it is crucial to ensure the security of the data stored on the drive. Here are some important steps to follow:
- Use a secure connection: When connecting the DVR hard drive to a computer or another device, make sure to use a secure and encrypted connection to prevent unauthorized access to the data.
- Set up strong passwords: If the DVR system requires a password to access the hard drive, make sure to set up a strong and unique password to protect the data from unauthorized users.
- Enable encryption: If possible, enable encryption on the DVR hard drive to add an extra layer of security to the data stored on the drive.
- Regularly update security software: Keep security software up to date on the device used to access the DVR hard drive to protect against potential security threats.
- Limit access to authorized users: Only allow authorized users to access the DVR hard drive to prevent unauthorized individuals from viewing or tampering with the data.
